PRODUCT FEATURES
- Linear Sensing Distance:0~10mm;

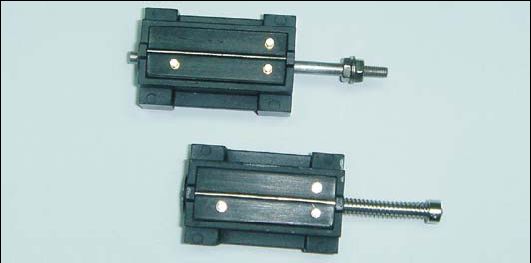

- Back Spring Available, (For Example LCP-10FA-BS);
- Light Weight & Small Operating Friction.
ELECTRICAL CHARACTERISTICS
|
Effective Electrical Travel |
10mm |
|
Total Resistance Value |
1、2kΩ |
|
Total Resistance Tolerance |
±20% |
|
Independent Linearity |
±1% (±0.5%) |
|
Power Rating |
0.3W/70℃ |
|
Output Smoothness |
0.1% Max |
|
Insulation Resistance |
Max 100MΩ At DC500V |
|
Dielectric Strength |
AC500V For 1 Minute |
|
Resistance Of Temperature Coefficient |
±500ppm/℃ |
MECHANICAL CHARACTERISTICS
|
Mechanical Travel |
12mm |
|
Operating Force |
29x10-2N (30gf) Max,
300gf Max (With Back Spring) |
|
Weight |
About 60g |
ENVIRONMENTAL CHARACTERISTICS
|
Operating Temperature Range |
－40～100℃ |
|
Vibration |
98m/s2（10G）500Hz |
|
Shock |
490m/s2（50G）11ms |
|
Life Cycle |
5 million cycles |
|
