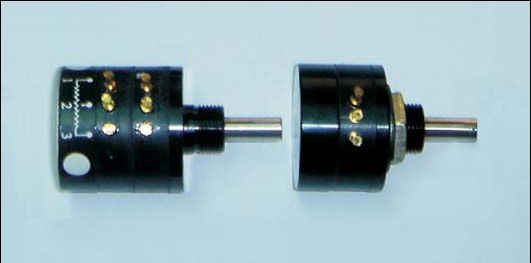

PRODUCT FEATURES
- 360°Non-stop Rotation;
- Built-in Ball Bearing;
- Small Diameter,Light Weight;
- Tailor-made Specification Wellcome.
ELECTRICAL CHARACTERISTICS
Effective Electrical Angle |
340° |
|
Total Resistance Value |
0.5、1、2、5、10kΩ |
|
Total Resistance Tolerance |
±20% |
|
Independent Linearity |
±1% |
|
Power Rating |
0.5W/70℃ |
|
Output Smoothness |
0.1% Max |
|
Insulation Resistance |
Max 100MΩ At DC1000V |
|
Dielectric Strength |
AC500V For 1 Minute |
|
Resistance Of Temperature Coefficient |
±500ppm/℃ |
|
Synchronous Error |
0.5% (RCP-25FB-DG) |
MECHANICAL CHARACTERISTICS
Mechanical Rotation Angle |
360° |
Rotational Torque |
20×10-4N.m Max
20gf.cm (RCP-25FB) |
|
30×10-4N.m Max
20gf.cm (RCP-25FB-DG) |
|
Weight |
About 30g (RCP-25FB) |
|
About 35g (RCP-25FB-DG) |
ENVIRONMENTAL CHARACTERISTICS
|
Operating Temperature Range |
－40～100℃ |
|
Vibration |
150m/s2（15G）2000Hz |
|
Shock |
490m/s2（50G）11ms |
|
Life Cycle |
10 million cycles |
|
