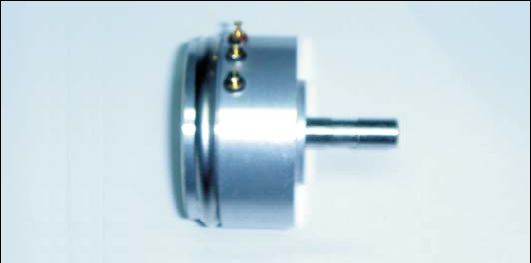

PRODUCT FEATURES
- 360°Non-stop Rotation;
- Built-in Ball Bearing;
- Light Weight,Low Cost,Suitable for Servo Mounting;
- Tailor-made Specification Wellcome.
ELECTRICAL CHARACTERISTICS
Effective Electrical Angle |
345° |
|
Total Resistance Value |
0.5、1、2、5kΩ |
|
Total Resistance Tolerance |
±20% |
|
Independent Linearity |
±1% (±0.5% Precision) |
|
Power Rating |
2W/70℃ |
|
Output Smoothness |
0.1% Max |
|
Insulation Resistance |
Max 100MΩ At DC1000V |
|
Dielectric Strength |
AC1000V For 1Minute |
|
Resistance Of Temperature Coefficient |
±500ppm/℃ |
MECHANICAL CHARACTERISTICS
Mechanical Rotation Angle |
360°Non-stop |
|
Rotational Torque |
18×10-4N.m
(18gf.cm) Max |
|
Weight |
About 40g |
ENVIRONMENTAL CHARACTERISTICS
|
Operating Temperature Range |
－40～120℃ |
|
Vibration |
150m/s2（15G）2000Hz |
|
Shock |
490m/s2（50G）11ms |
|
Life Cycle |
10 million cycles |
|
